| Adedi: | 1 set |
| fiyat: | negotiable |
| Standart ambalaj: | Wooden Crate |
| Teslim süresi: | 5 - 7 days |
| Ödeme yöntemi: | T/T, Western Union,Pypal |
| Tedarik kapasitesi: | 500 sets / month |

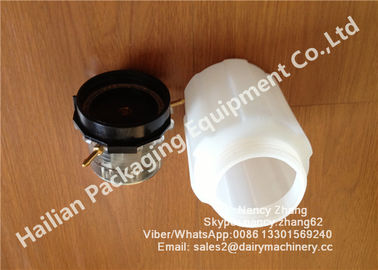

Plastic Lubricating Oil Can Milk Machine Vacuum Pump Set Parts 500ml Volume
Quick Details:
Name: plastic lubricating oil can
Volume: 500ml
Material: plastic
Model: HL-V09 & HL-V09A
Function: loading vacuum pump oil which could lubricate vacuum pump rotary vane
HL-V09 Model
Features for Vacuum Pump Rotary Vane:
- The fiber vane has a higher flexural strength, it is not easy to deformation and bending.
- It has smaller density than iron, so the centrifugal force is small, it will not wear casing wall.
- With high temperature resistance, it is suitable for 350 - 800 °C.
- With high hardness, on the premise of sufficient oil lubrication, the vacuum pump is very abrasion
resistant and durable.
Description of Vacuum Pump:
The vacuum pump is the heart of the milking machine. Regular servicing helps preserve the vacuum
reserve. Various capacity vacuum pump need different specification vacuum pump pallet. The heavy
duty body of the rotary vane vacuum pump is constructed from chemical resistant cast iron, making it
durable to any environmental working conditions.
The function of vacuum pump is to extract air from the milking machine system through the belt driven.
This milking machine vacuum pump gives flexibility with speeds ranging from about 800-1500 r/min and a
corresponding angel of pump capacities to suit different sizes of milking machines.
Specification of Vacuum Pump:
|
Capacity (L/min) |
250 |
300 |
550 |
850 |
1500 |
2100 |
|
Pump Speed (r/min) |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
|
Vacuum Degree(Kpa) |
50 |
50 |
50 |
50 |
50 |
50 |
|
Noise (Db(A)) |
≤50 |
≤50 |
≤60 |
≤70 |
≤70 |
≤70 |
|
Ultimate Vacuum(Mp) |
≤90 |
≤90 |
≤90 |
≤90 |
≤90 |
≤90 |
|
Motor Power(kw) |
1.1 |
1.1 |
2.2 |
3 |
4 |
5.5 |
|
Weight(kg) |
13.5 |
14 |
31 |
36 |
57.5 |
69.5 |
|
Size(L×W×H) (mm) |
230*220*220 |
230*220*220 |
280*270*220 |
300*220*220 |
430*230*230 |
390*290*290 |
Note: The above parameters for reference only!
One whole set vacuum pump set consists of vacuum pump, silencer (stainless steel muffer), oil can (oil pot), belt (pulley) and vacuum pump pallet and some rubber parts. Details as below picture:
|
|
